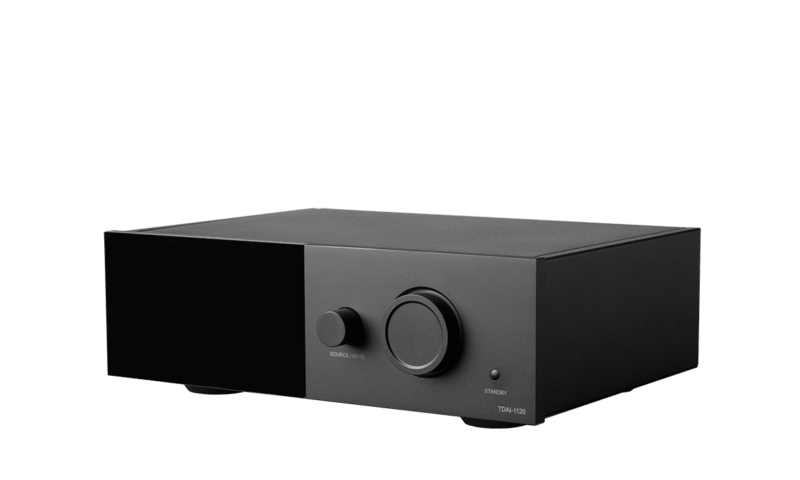

Lyngdorf TDAI-1120
Compact streaming amplifier with HDMI
Lyngdorf TDAI-1120 provides the ultimate in flexibility. Its small design footprint allows it to be easily placed anywhere in the home, and the vast feature set offers a great variety of streaming options. All the user-friendly features you could ask for and paired with Lyngdorf Audio’s world-famous digital amplification technology and patented RoomPerfect™ room correction for the ultimate listening experience.
Connecting the TDAI-1120 to the HDMI (ARC) output of a television, will turn the TDAI-1120 into the best sound system possible for your movies. With CEC and eARC lip-sync functionality the TDAI-1120 can connect perfectly with tomorrows televisions and receive the on-off and volume commands from your television remote.
New world of streaming
Connect the TDAI-1120 to your WiFi and enjoy all the integrated streaming services.
- Chromecast built-in
- Spotify® Connect
- TIDAL Connect including MQA decoding
- Roon Ready
- AirPlay2
- Bluetooth connectivity
- Internet Radio (vTuner)
- Network/local file playback
The TDAI-1120 accepts all your media interfaces and holds itself an advanced media player of the highest quality. Through the network or via the USB connectors, you can access your library of music through the DLNA/ UPnP enabled player. All can intuitively be controlled with your smart phone, tablet, or computer.
The ultimate experience
The TDAI-1120 ships complete with RoomPerfect™, providing the ultimate listening experience. With RoomPerfect™, the TDAI-1120 delivers a perfect musical experience in all living rooms. Without the need for extensive acoustic treatment, you get a sound system with optimal frequency response, seamless level alignment, and bass management that perfectly integrates the speakers and subwoofers.
Specifications
- Description: 2-channel streaming amplifier
- Power rating: 2 x 120 W RMS @ 4Ohm / 2 x 60 W RMS @ 8Ohm
- Max output current: 30A
- Audio specifications: Frequency Response: ±0,5dB from 20 to 20,000 Hz, Total Harmonic
- Distortion: 0.05% max from 20 to 20,000 Hz THD-N 1w/8ohm 0,04%, THD-N 1w/4ohm 0,04%
- Digital inputs (Asynchronous): 2 x Coaxial (≤192kHz/24bit) 2 x Optical (≤96 kHz/24bit) 1 x HDMI eARC (≤24 bit/192 kHz)
- Analog inputs: 1 x Phono Single Ended RCA (RIAA / 47kOhm 100pF), 1 x Analog Single Ended RCA (Max level: 4.0V = 0dBFS) 1 x Microphone input (XLR) for RoomPerfect™ calibration
- Analog output: 1 x Stereo Analog RCA (75ohm-Max output level 4 Vrms)
- EQ: RoomPerfect™, Pre-Equalizer, ICC, 32 x adjustable voicings holding ≤8 filters with adjustable gain and Q
- Media player: Internet Radio (vTuner), Spotify Connect, TIDAL Connect including MQA decoding, Roon Ready, Google Chromecast, Apple AirPlay2, DLNA Support (UPnP/see DLNA formats), Local file playback (USB), Bluetooth (BLE)
- Wireless connections: Bluetooth connectivity, Wi-Fi (802.11 n)

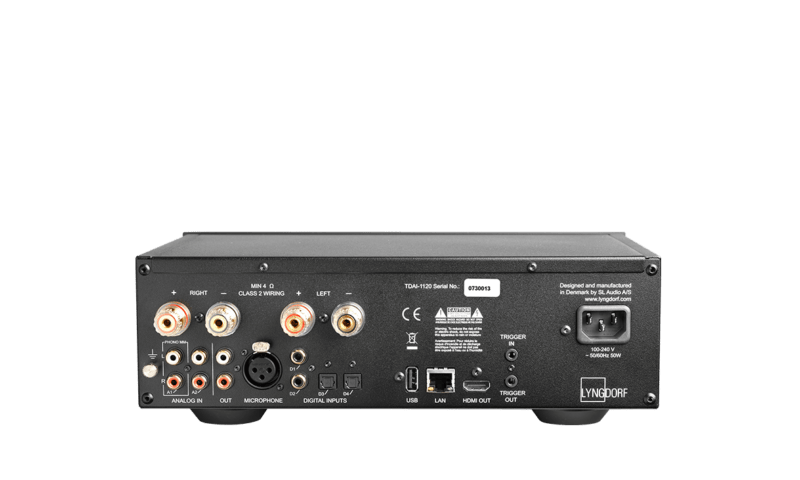

- Interfaces: Intuitive input selector, Web-interface for setup and media player, Remote application for IOS and Android, IP control, CEC (HDMI), 1 x trigger input, 1 x trigger output, 1 x RJ45 Ethernet LAN connector, 1 x USB connectors (Type A)
- Remote control: Infrared
- Accessories included: RoomPerfect™ microphone, Microphone stand, Microphone cable
- Optional accessory: IR remote control, rack mounting kit
- Placement options: Freestanding
- Heat dissipation value: 170 BTU
- Dimensions (H x W x D): 10.1 x 30 x 26 cm (including connectors), 3.98 x 11.8 x 10.3 inches
- (including connectors)
- Weight: 3,3 kg / 7.3 lb
- Finish: Anodized aluminum, matte black
