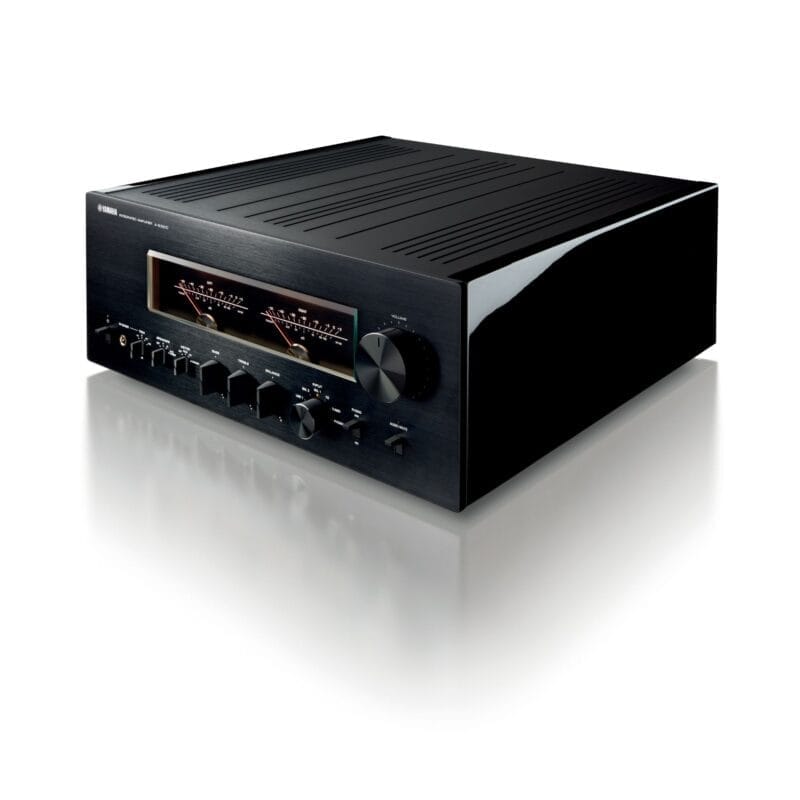

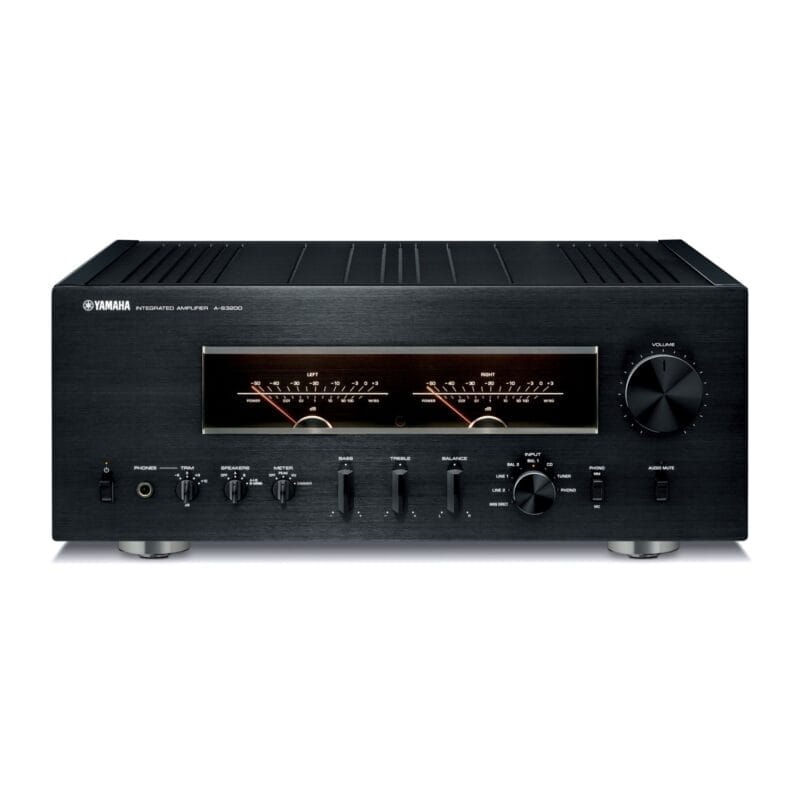

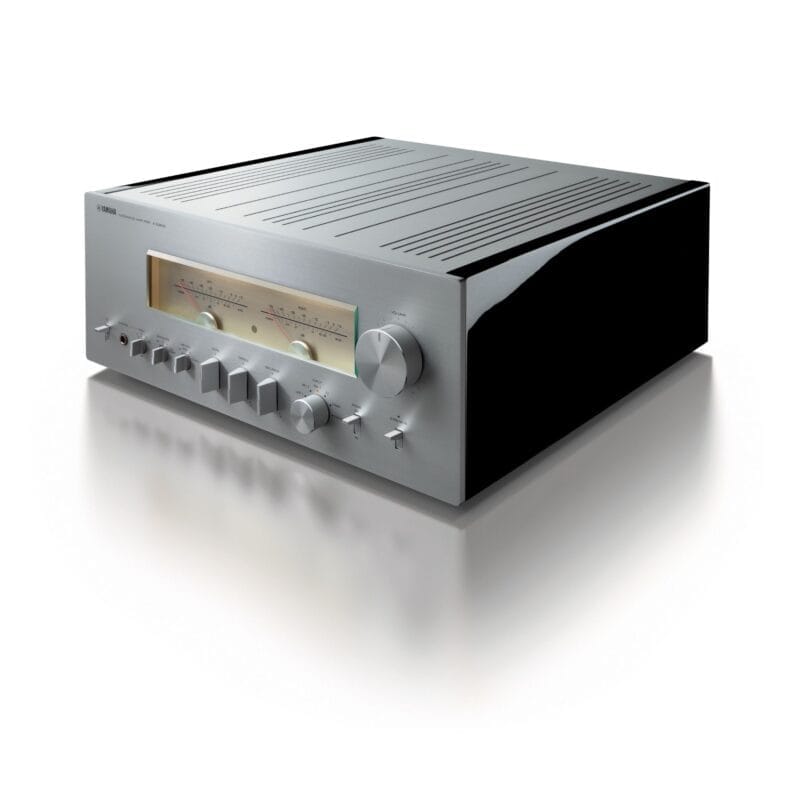

A-S3200 Flagship Integrated Amplifier
In the unyielding pursuit of innovation and musicality, Yamaha is proud to present its flagship integrated amplifier – the A-S3200. Meticulously designed from the ground up, the A-S3200 realizes the ambitions of the artist and establishes a new benchmark in high-fidelity audio.
Key Features
- Fully balanced circuitry to deliver impressively low signal-to-noise ratio and improved channel separation
- Large toroidal transformer in the pursuit of pure musicality
- Mechanical Ground Concept maximizes rigidity and reduces unwanted vibration
- High-quality PPS capacitors for delivering an authentically musical sound
- Exquisite level meters visually present the dynamics and pulse of the music
- Obsessive, meticulous switch design
- Heavy-duty brass feet with spikes or scratch-resistant base
- Original speaker terminals cut from pure brass with a highly secure connection
- 2+3 Extended 5-year warranty via product registration
Technical Specifications
| Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) | Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe): 170 W + 170 W |
| High Dynamic Power/Channel (8/6/4/2 ohms) | High Dynamic Power/Channel (8/6/4/2 ohms): 120/150/200/300 W |
| Damping Factor | Damping Factor: 250 (1 kHz, 8 ohms) |
| Frequency Response | Frequency Response: +0/-3 dB (5 Hz-100 kHz), +0/-0.3 dB (20 Hz-20 kHz) |
| RIAA Equalization Deviation | RIAA Equalization Deviation: +/-0.5 dB (PHONO (MM/MC)) |
| Dimensions (W x H x D) | Dimensions (W x H x D): 435x180x464 mm; 17-1/8″ x 7-1/8″ x 18-1/4″ |
| Weight | Weight: 24.7 kg; 54.5 lbs |
| Rated Output Power | Rated Output Power: [20 Hz-20 kHz, 0.07 % THD] 100 W + 100 W (8 ohms), 150 W + 150 W (4 ohms) |
| Total Harmonic Distortion (20Hz to 20kHz) | Total Harmonic Distortion (20Hz to 20kHz): [Input 0.5 V] PHONO MC→LINE2 OUT: 0.02 % (1.2 mVrms), PHONO-LINE2 OUT: 0.005 % (1.2 Vrms), CD, etc./BAL1,2 →SP OUT: 0.035 % (50 W/8 ohms) |
| Signal-to-Noise Ratio | Signal-to-Noise Ratio: PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL1,2: 114 dB |
| Input Sensitivity | Input Sensitivity: [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL1,2: 200 mVrms/100 kohms |
| Transformer | Transformer: 623 VA (Toroidal) |
