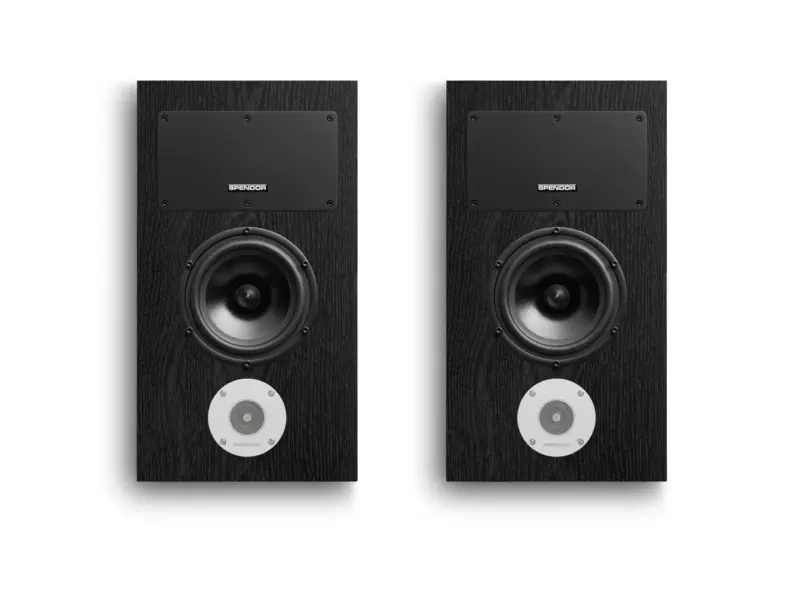

DS1 On-Wall Speaker
A sophisticated, compact 2-way, on-wall loudspeaker. The DS1 delivers music with exceptional resolution and vibrant realism when conventional loudspeakers are not desired. It delivers low frequencies with power, scale and authority with a cabinet depth of 135mm. It is easy to place in real-world listening rooms, very capable, and compatible with all good amplifiers. With a short slim enclosure and smart modern finishes, the Spendor DS1 is entirely at home in any listening environment.
• A simple but ingenious wall mounting system secures the DS1 to a flat surface, whilst decoupling the back of the cabinet from transferring any unwanted vibrations, which greatly enhances sonic performance.
• The proprietary 18cm Spendor EP77 polymer cone mid-bass drive unit mounted in a slim sophisticated cabinet, helps the DS1 deliver a room-filling sound with projection, character and sheer entertainment far beyond its size.
• With room-friendly bass that is taut and controlled, a smooth midrange and an extended treble, the DS1 delivers a big, full-bodied sound. This allows the DS1 to be used for front channel stereo duties as well as being a perfect surround loudspeaker, offering 2.0, 2.1, 5.1, 6.1, 7.1 and Dolby Atmos configurations to the Spendor enthusiast.
Technical Specifications
Enclosure type- Rigid, asymmetric braced, cabinet with dynamic damping
Vent type- Sealed box
Input connection- Neutrik speakON connector
Typical in-room response- 60Hz – 25kHz
Power handling- 150 watts unclipped programme
Amplifier- 25-100 watts
Sensitivity- 86dB for 1 watt at 1 metre
Nominal impedance- 8 ohms (min 5.8)
HF driver- 22mm LPZ polyamide dome
Bass/mid driver- 18cm EP77 polymer cone
Crossover frequency- 3.8kHz
Net Weight- 8.5kg
Dimensions (H x W x D): 500mm x 275mm x 135mm
Accessories- Magnetic grille, Neutrik speakON plug and wall-mount fixings
