Canterbury GR-OW

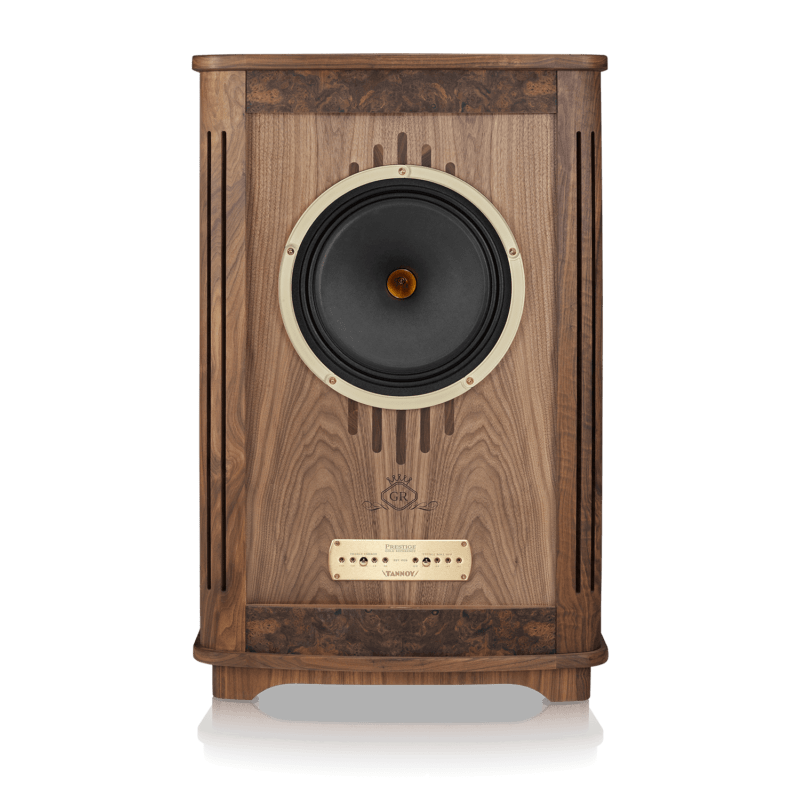

Tannoy’s latest innovation, the 15 inch Gold Reference driver, stands as Tannoy’s most powerful and articulate Dual to date. It boasts an incredible 600 watt peak power handling and offers over 96dB efficiency in the 235 litre Canterbury GR cabinet.
Tannoy’s renowned 15-inch Dual receives extensive upgrades for the Gold Reference series, benefiting from advanced technology initially developed for the flagship Kingdom Royal project. The Gold Reference driver’s low frequency section features a new fibre-enriched paper pulp cone material, enhancing the cone’s mechanical characteristics. This cone is complemented by a twin roll surround made of impregnated fabric, optimising damping characteristics.
A significant advancement in the Canterbury GR is the high-frequency (HF) unit. This unit includes a new aluminium-magnesium alloy compression driver diaphragm, heat-treated to enhance mechanical integrity under high-frequency loads. The integration of new Mylar surround materials furthers improvements in damping and motor cooling. These enhancements collectively ensure unparalleled clarity and articulation throughout the HF range.
Designed for high-volume listening without inducing fatigue, the Gold Reference Dual imbues the Tannoy Canterbury loudspeaker with unmatched naturalness and presence.
Technical Specifications
System
Frequency response 1 28 Hz – 27 kHz (-6 dB)
Recommended amplifier power 20 – 300 W RMS
Power handling (IEC) 150 W continuous, 600 W peak
Nominal dispersion 90 degrees conical
Sensitivity 2 96 dB (1 W @ 1 m)
Impedance 8 Ω
Maximum SPL 2 118 dB continuous, 124 dB peak
Components
Low frequency dual concentric 380 mm (15″) with paper pulp cone and twin roll impregnated
fabric surround, 52 mm (2″) round wire voice coil
High frequency dual concentric 52 mm (2″) aluminium/magnesium alloy dome with round wire
voice coil
Crossover
Frequency 1.1 kHz
Type Bi-wired, hard wired passive, low loss. Time compensated
2nd order low pass, 2nd order high pass
Adjustment ±3 dB over 1.1 kHz to 27 kHz shelving,
+2 dB to -6 dB per octave over 5 kHz – 27 kHz slope
Enclosure
Type Dual variable distributed ported

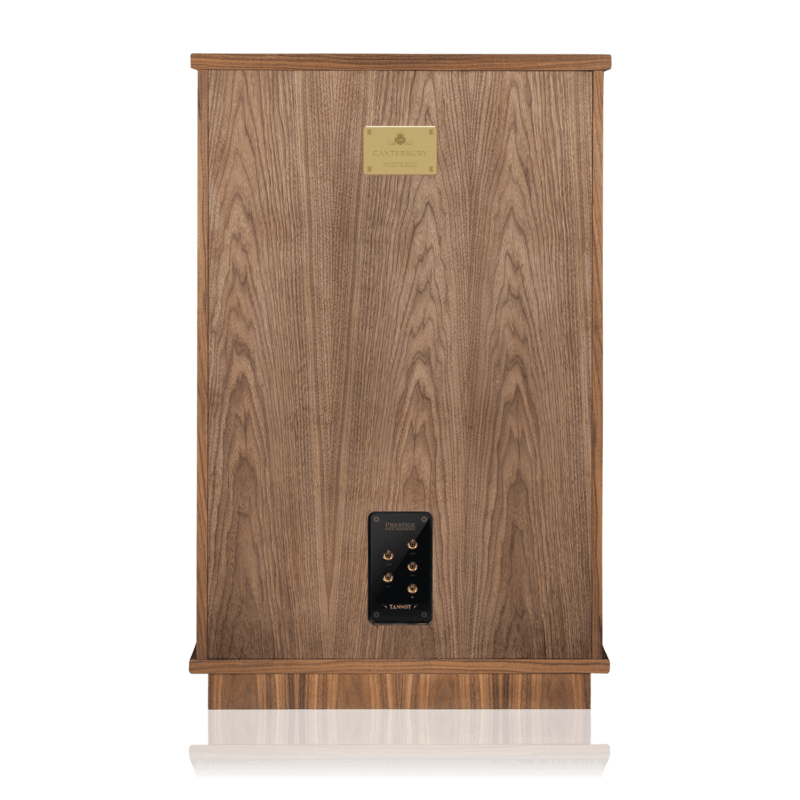

Connectors 5 x 4 mm 24 ct Tannoy customized binding posts
Dimensions (HWD) 480 x 680 x 1100 mm
(18.9 x 26.8 x 43.3″)
Net weight 68 kg (149.6 lbs)
Construction 19 mm (¾”) MDF with plywood internal bracing, heavily damped

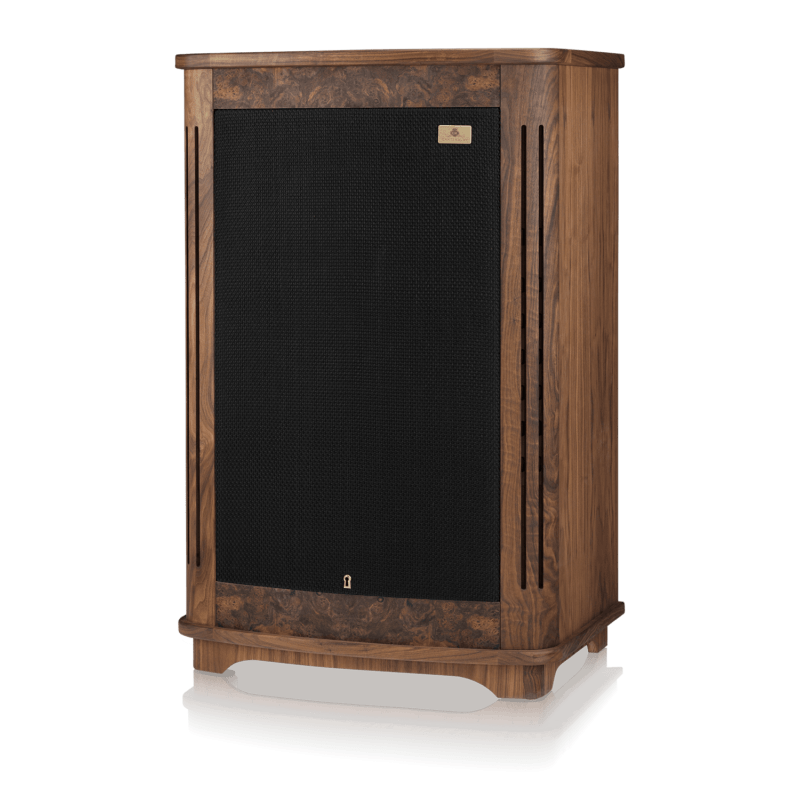

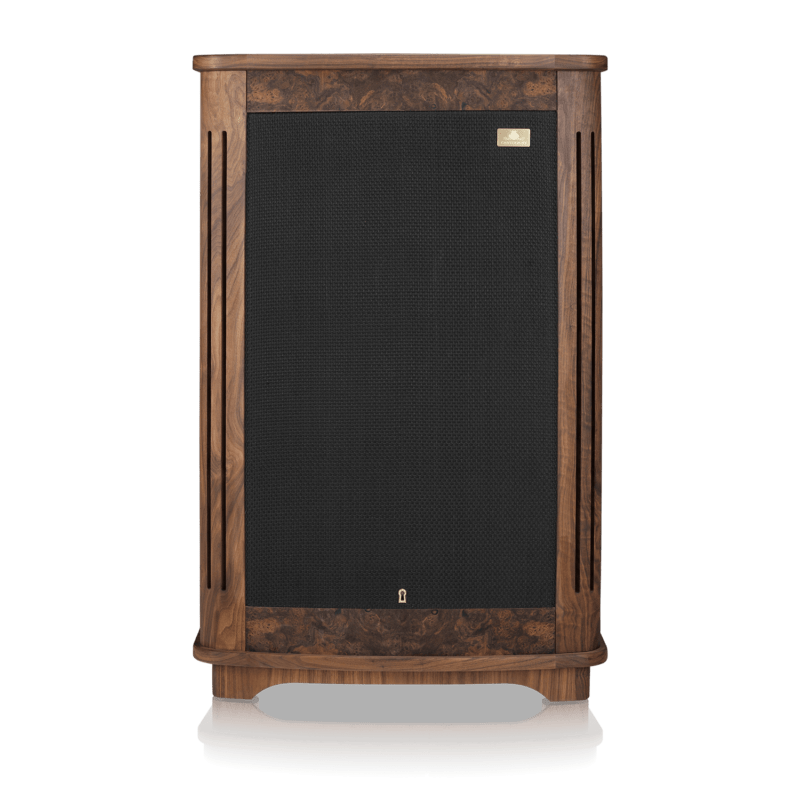

Finish Walnut veneer and high acoustic transparency nylon grill cover
Accessory pack (included)
Bi-wire bridge connectors
Prestige wood wax
Felt pad
Grille key
Metal feet
Welcome pack documentation
