- Three-Motor Direct-Drive Transport
- Balanced XLR Inputs and Outputs
- Improved Original Revox Tape Heads
- Precision Swiss Steel Capstan Shaft
- Pure Analogue Logic Control
A Reimagined Icon of Analogue Sound

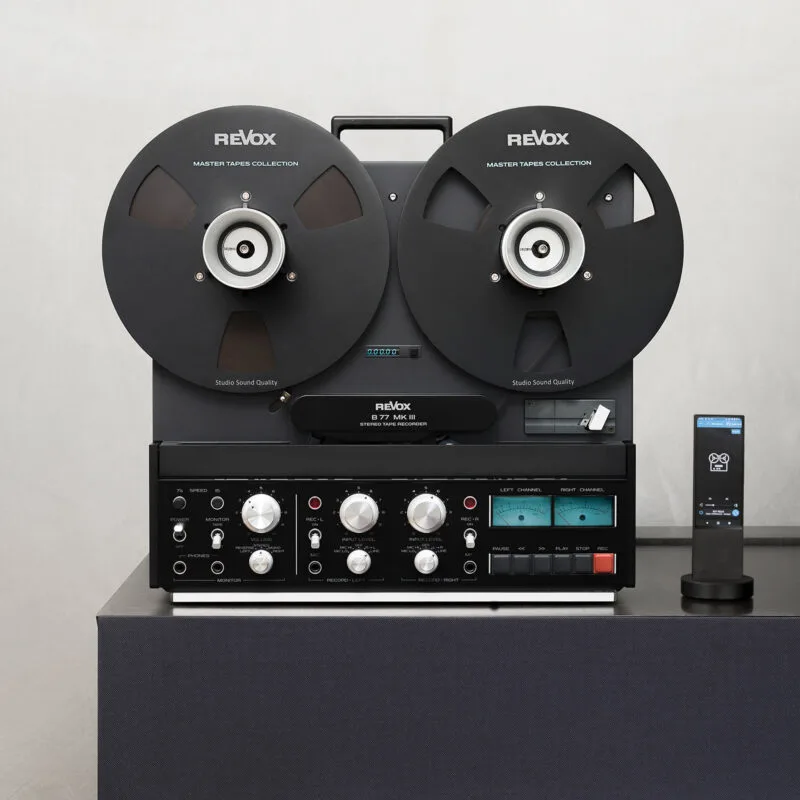

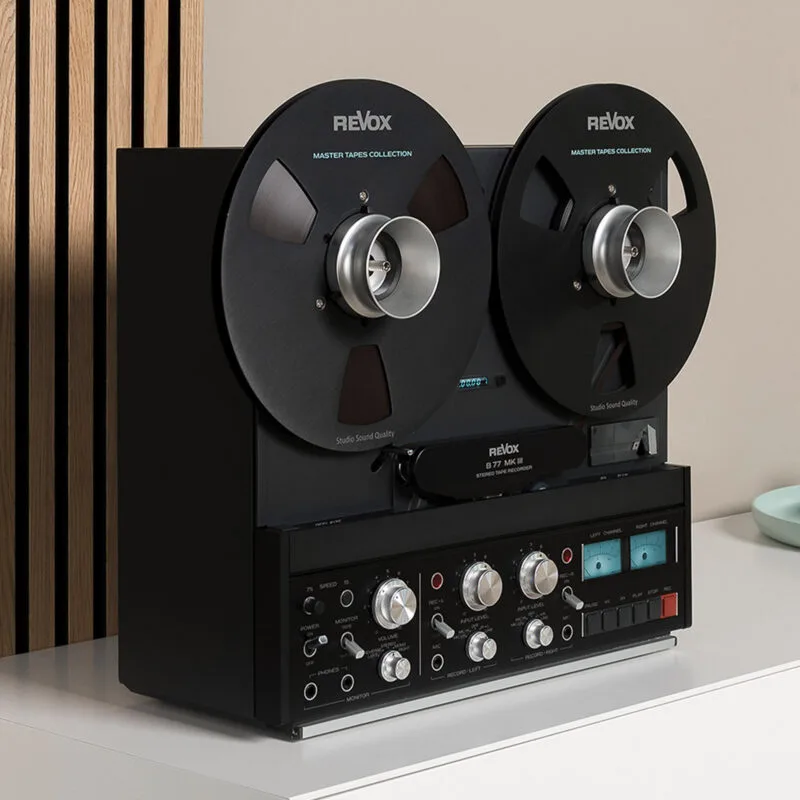

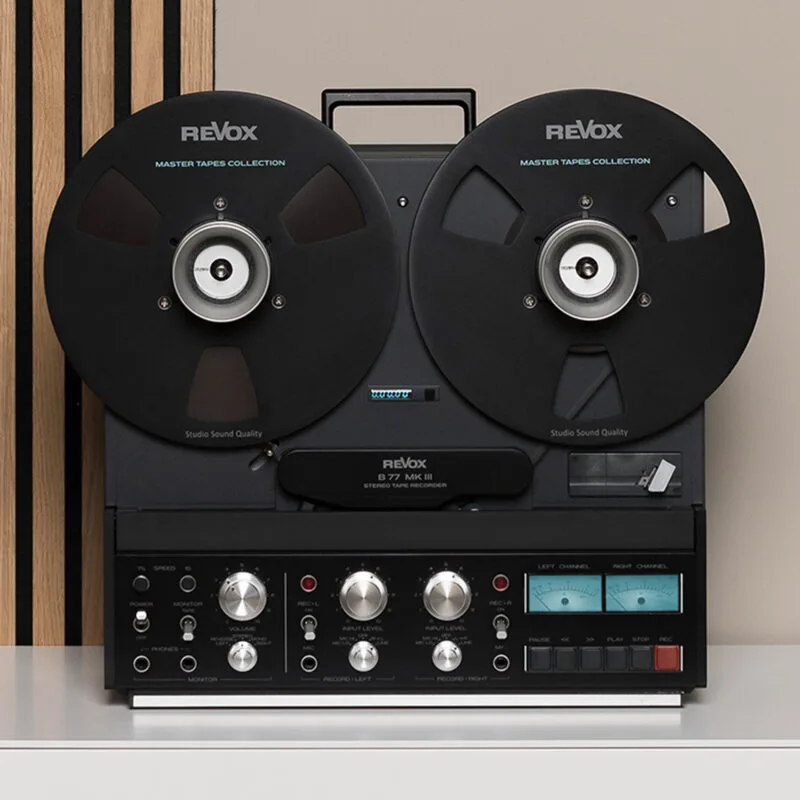

The Revox B77 MK3 is a reel-to-reel tape recorder conceived for those who regard analogue music reproduction as an art form rather than a format. Developed by the Revox engineering team in Villingen, Germany, the Revox B77 MK3 stereo tape recorder represents a comprehensive redesign of one of the audio world’s most celebrated machines – retaining every hallmark that defined the original while introducing substantial electronic and mechanical refinements for a new era. With production limited to no more than twenty units per month, each Revox B77 MK3 emerges from an exacting manufacturing process that prioritises acoustic integrity above all else.
A Heritage of Uncompromising Engineering
Few names in professional and domestic audio carry the weight of Revox. The original B77 earned recognition across recording studios and private listening rooms alike for benchmark-setting sound reproduction and construction quality built to endure decades of daily use. The new Revox B77 MK3 honours that lineage without merely revisiting past achievements. Revox’s development team has optimised the entire audio electronics architecture using modern simulation tools and refined components, yet the stereo tape recorder remains entirely analogue throughout – containing no semiconductors with software of any kind. This philosophical commitment ensures that every signal path within the Revox B77 MK3 preserves the warmth, dynamic range and tonal authenticity that define the analogue recording experience.
Three-Motor Drive and Precision Capstan
The transport mechanism of the Revox B77 MK3 features a three-motor drive with direct drive and servo control. Two powerful winding motors accelerate tape reels to operating speed in moments and decelerate with smooth precision, whilst a regulated capstan motor compensates for even the faintest speed fluctuations. The capstan shaft itself – machined from a special steel produced by Swiss Steel in a dedicated five-tonne batch – demands seventeen individual manufacturing steps before completion. Concentricity tolerance reaches one thousandth of a millimetre, a figure that speaks to the obsessive precision Revox applies at every stage. A newly designed pressure roller, guided by dual ball bearings rather than conventional bearings, further enhances the stability and accuracy of tape transport. At 38 cm/s, the reel-to-reel recorder achieves wow and flutter figures better than 0.04%, rising to better than 0.08% at 19 cm/s – numbers that place this stereo tape recorder among the finest available.
Improved Original Tape Heads
Revox has manufactured tape heads in-house for decades, drawing on proprietary alloys, processes and design knowledge accumulated across multiple generations of machines. The Revox B77 MK3 employs three precision heads – one for reproduction, one for recording and one for erasure – enabling rear-tape monitoring during sessions. Each head is milled from solid material with exceptional uniformity across track positions, and the playback head gap measures just 2 µm (0.002 mm). Core packages use high-permeability magnetic material to deliver optimal output voltages with very low distortion. Compared with the preceding MK II, the heads fitted to the Revox B77 MK3 offer a significantly extended service life whilst maintaining the frequency response and tonal fidelity that professional users expect. Long pole pieces ensure a smooth response curve extending down to the lowest audible frequencies.
Studio-Grade Connectivity
Balanced XLR inputs and outputs equip the Revox B77 MK3 for seamless integration into both professional recording environments and high-end domestic audio systems. The balanced connection architecture ensures interference-free signal transmission, preserving detail and dynamic range across the full signal chain. An enclosed RCA adapter provides unbalanced connectivity for traditional home setups, whilst a dedicated switch allows configuration for studio or domestic operation. Two 6.3 mm microphone inputs and two 6.3 mm headphone outputs broaden the connection scope further. The headphone amplifier accommodates impedances from 32 to 600 ohms, delivering a 3 V output suitable for a wide range of high-end headphones. A DIN 4-pin connector supports external VariSpeed control and a DIN 9-pin socket enables remote-control operation.
Versatile Playback and Recording Standards
The reel-to-reel tape recorder supports quarter-inch two-track tapes on reels up to 26.5 cm (10.5 inches) in diameter. Dual tape speeds – 19 cm/s and 38 cm/s, electronically switched – allow the Revox B77 MK3 to accommodate a broad range of recordings and session requirements. Both NAB and CCIR equalisation standards are selectable, and adjustable magnetisation settings during playback and recording ensure compatibility with all common tape formulations. The frequency response at 38 cm/s extends from 30 Hz to 22 kHz, with the stereo tape recorder achieving a signal-to-noise ratio better than 70 dB and distortion below 0.24% at the higher speed. Stereo crosstalk remains better than −58 dB, and erase depth exceeds −78 dB.
Pure Logic Control and the Digital Counter

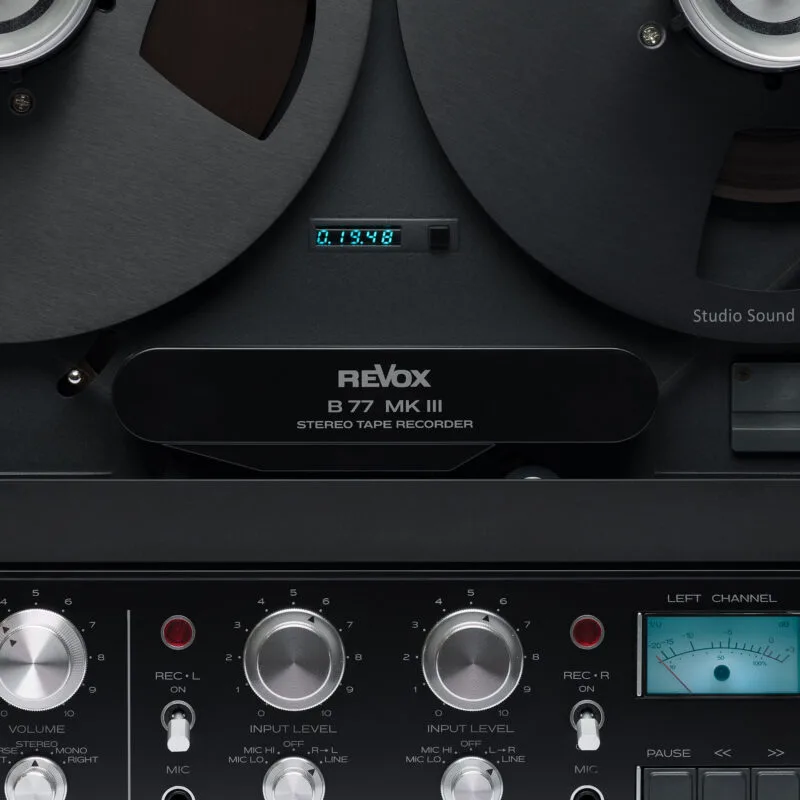

Where many contemporary devices depend on microprocessors and software, the Revox B77 MK3 operates through pure logic control – a deliberate design choice that eliminates software obsolescence and guarantees repairability for decades to come. The precision VU meters, calibrated to ASA standard, are complemented by LED peak-level indicators: a flashing LED confirms optimum recording level, whilst a continuously illuminated LED warns of overmodulation. A digital counter offers two modes – a standard counter function and a calculated tape-running-time display that automatically detects the selected speed. These refinements give the reel-to-reel recorder both the practical transparency of modern conveniences and the enduring reliability of analogue engineering.
Multiroom Integration
For owners seeking to incorporate the Revox B77 MK3 into a wider Revox ecosystem, an optional Revox Interface Multiuser 3.0 B77 module enables integration and control within Revox multiroom audio solutions – including operation via the Revox app or Revox wall-mounted controllers.
Pairing Suggestions
The Revox B77 MK3 reaches its full sonic potential when paired with Revox Analog Master Tapes, produced at the Revox KLANGWERK facility in Villingen using real-time duplication for a completely analogue signal chain from studio to listening room. A high-quality integrated amplifier or dedicated pre-amplifier with tape-loop capability, combined with reference-grade loudspeakers, will allow the reel-to-reel tape recorder to express every nuance captured in the recording. Revox’s own amplifier range offers a naturally synergistic partnership.
