Westminster Royal GR-OW
The Westminster Royal GR-OW is an absolute powerhouse, tailor-made for large-sized rooms. With its 2-way horn-loaded design, this speaker delivers an electrifying audio experience that will leave you speechless.
Powered by Tannoy’s cutting-edge Dual Concentric driver technology, the Westminster Royal GR-OW achieves a level of coherence and point-source imaging that’s nothing short of mind-blowing. It’s like having a live performance right in your living room.
Featuring a 15″ highly efficient driver boasting a staggering 99 dB/Watt sensitivity and the ability to handle 700 Watts at peak power, this speaker brings music to life with breathtaking dynamics and realism that you have to hear to believe.
Tannoy’s PepperPot WaveGuide, driven by the Alnico magnet system, takes point source symmetrical dispersion to new heights. Meanwhile, the aluminum-magnesium alloy diaphragm and Mylar surround compression driver deliver crystal-clear clarity and articulation across the entire high-frequency spectrum.

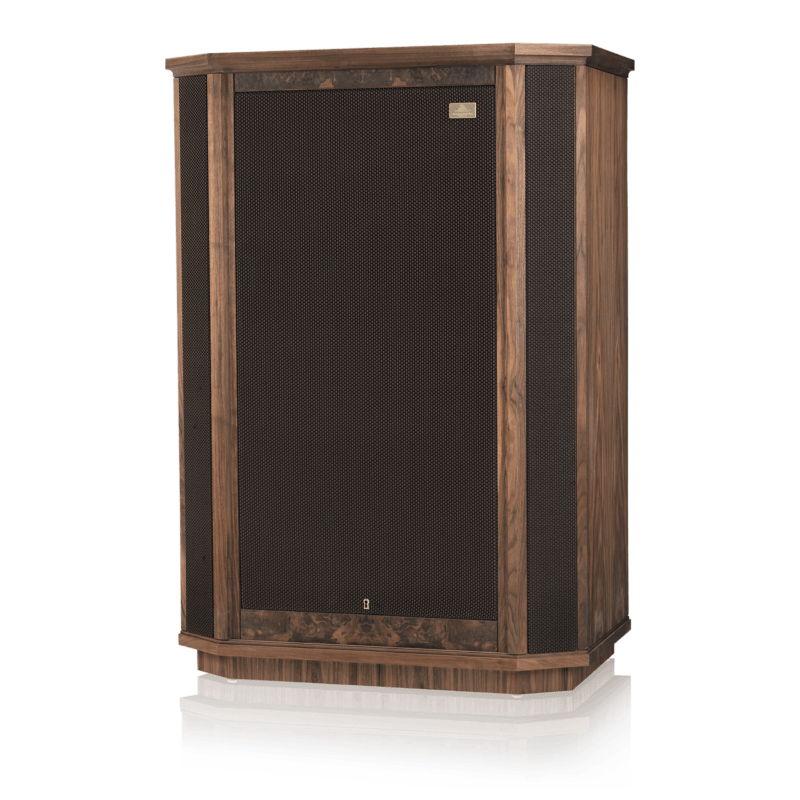

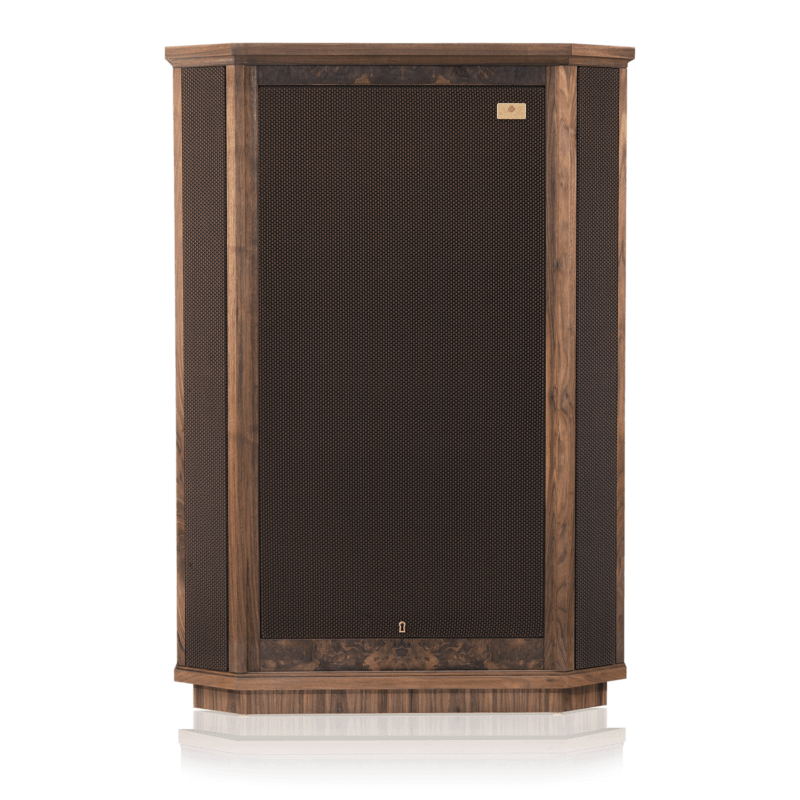

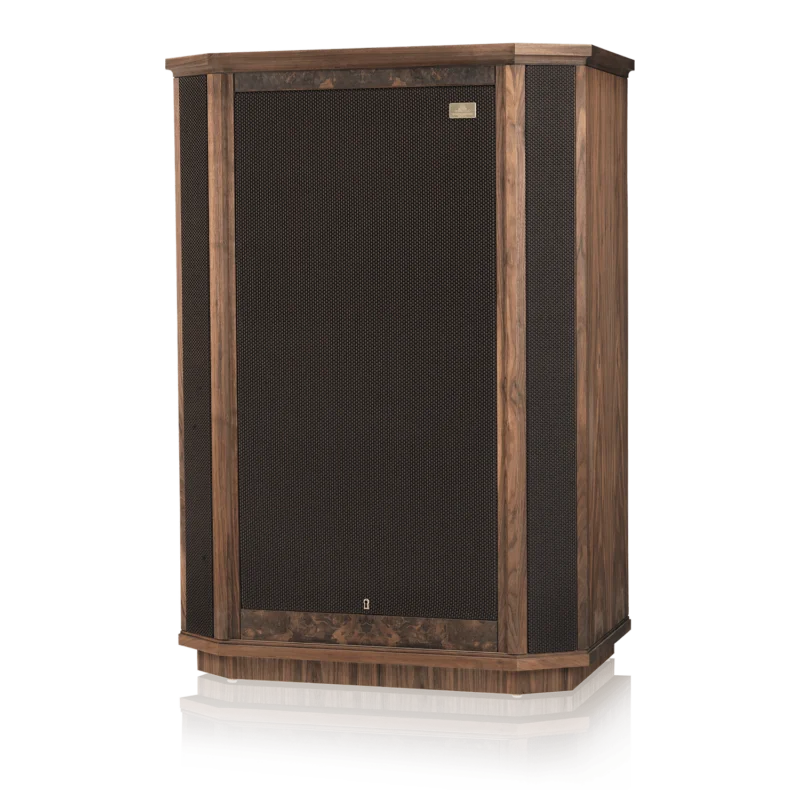

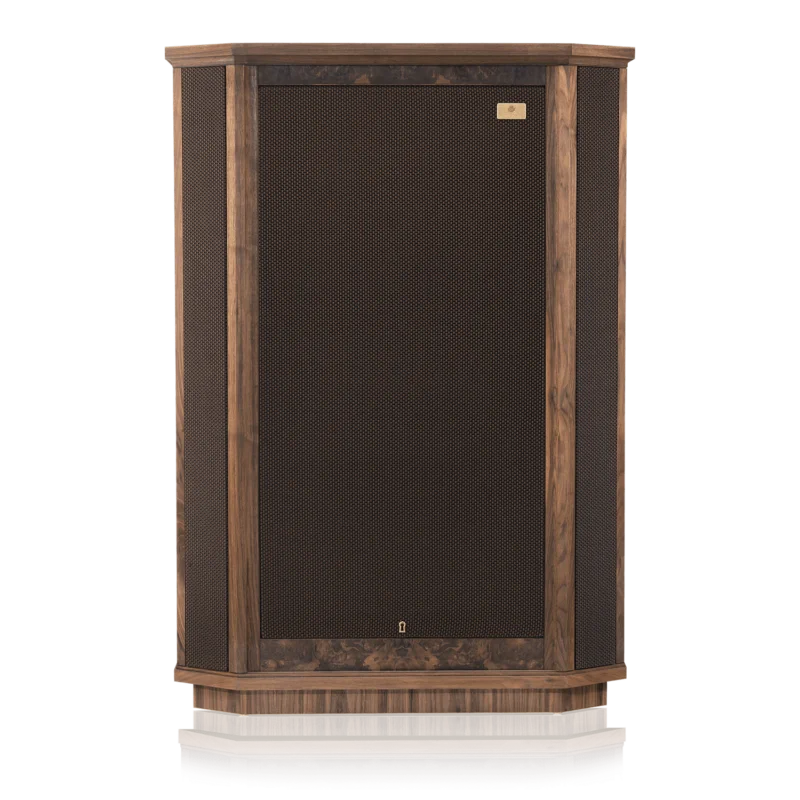

Not only does the Westminster Royal GR-OW sound incredible, but it’s also a work of art. Crafted with meticulous care, its handcrafted oiled walnut veneered cabinet adorned with hand-selected burr walnut inlays makes it a timeless piece of furniture that complements any space.
Inside, the speaker is equipped with top-notch components, including capacitors, low-loss laminated core inductors, and thick-film resistors, all working together to produce a natural and cohesive sound that will send shivers down your spine.

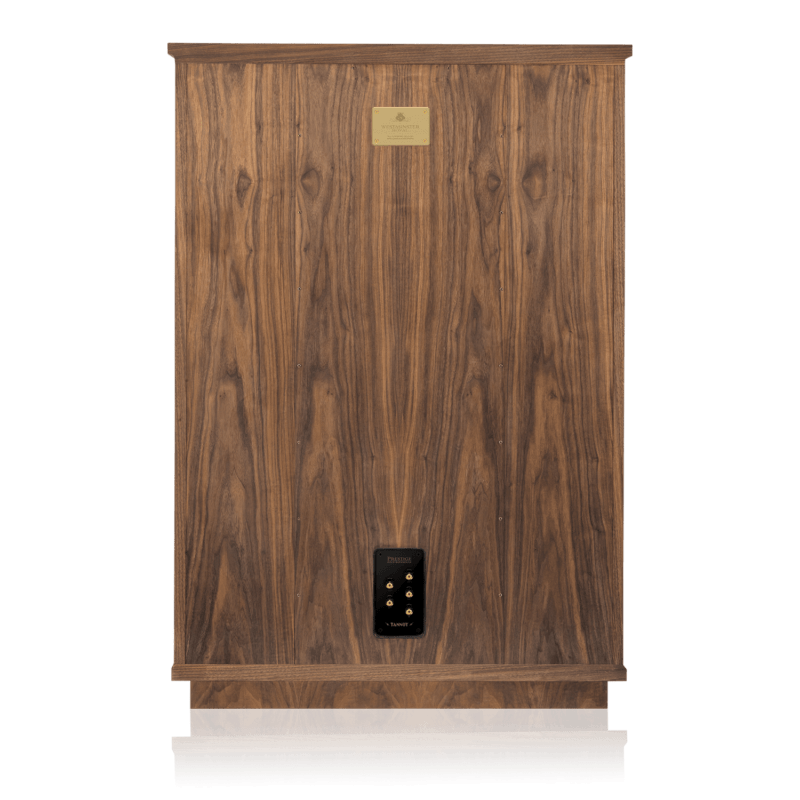

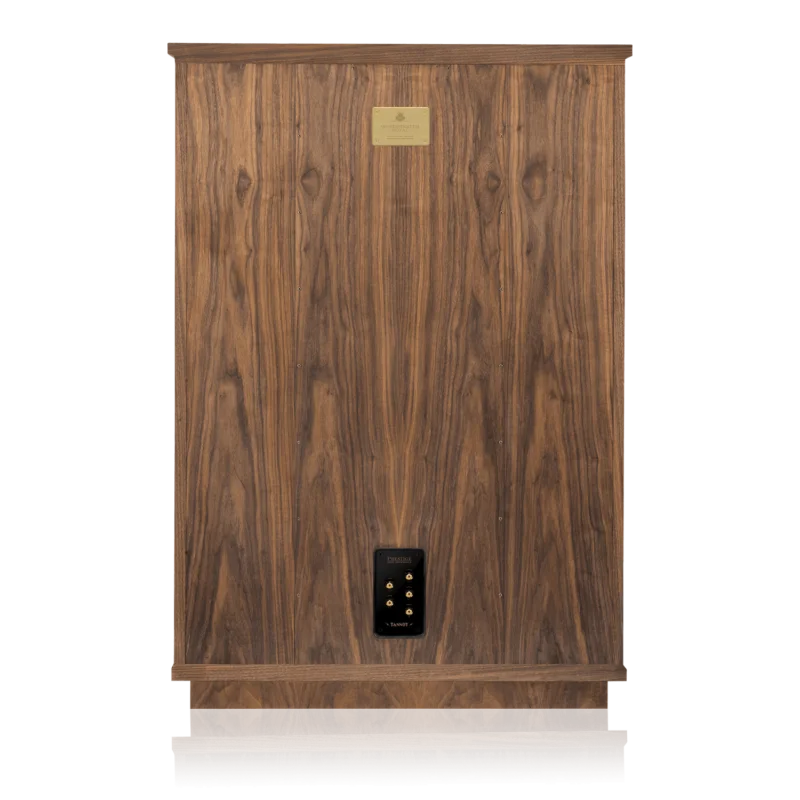

The bi-wireable binding posts ensure superior signal transmission and integrity, while the fifth binding post reduces interference, resulting in unparalleled midrange clarity.

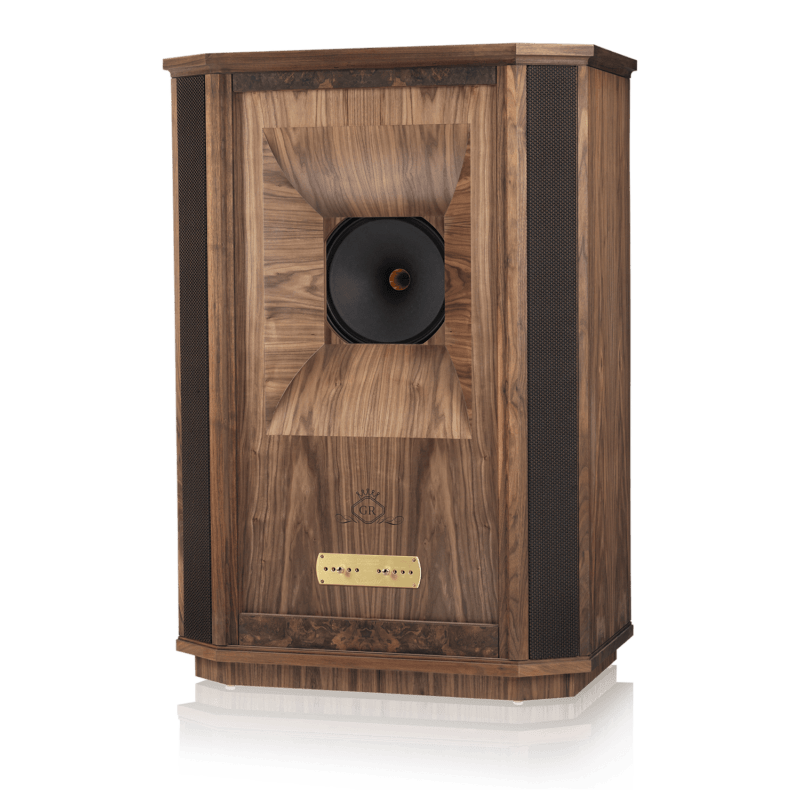

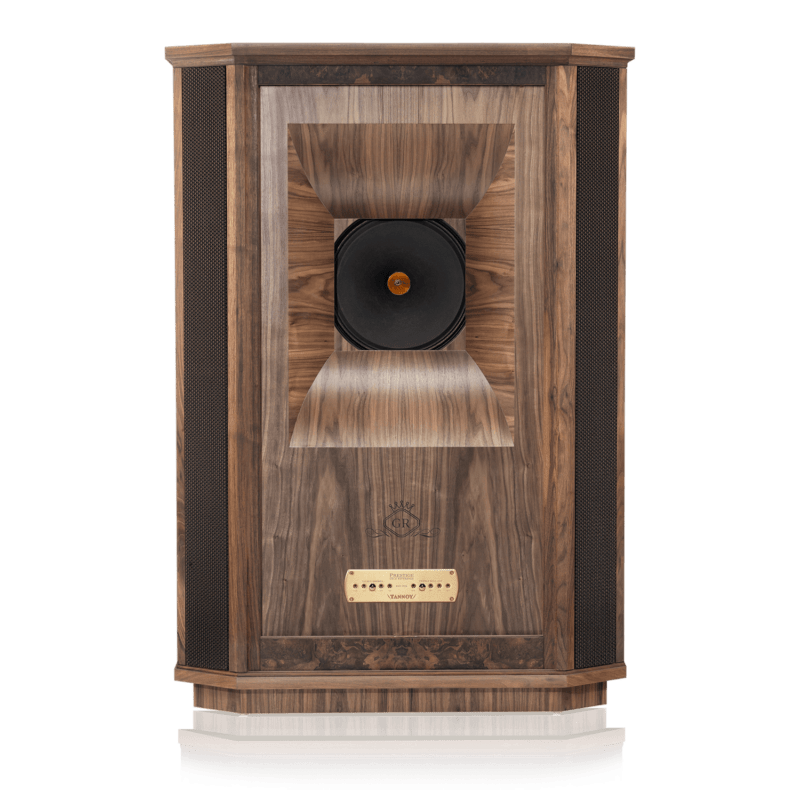

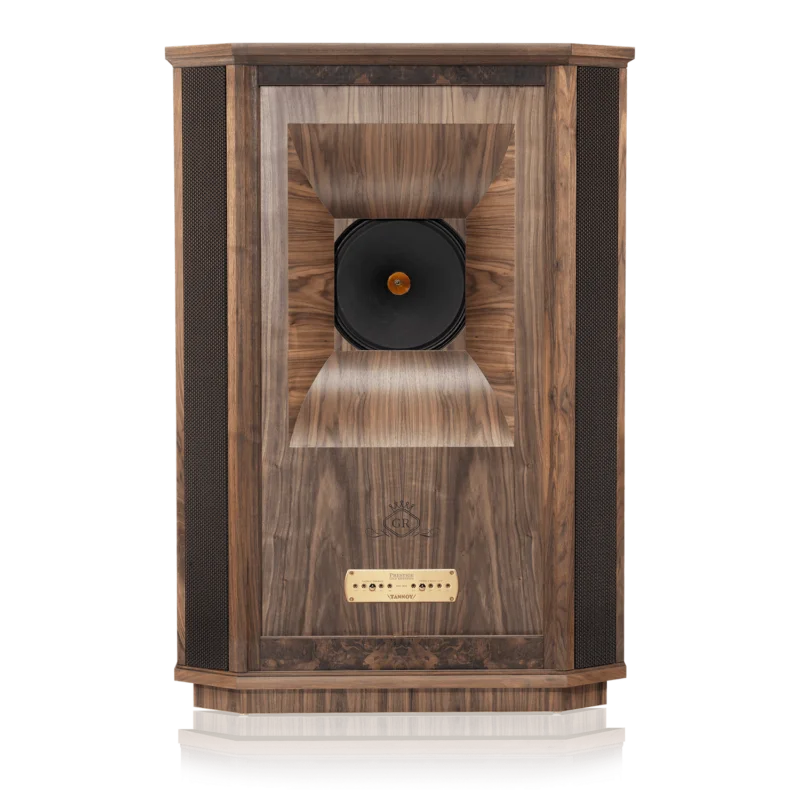

When it comes to controlling low-frequency performance, the high-density birch ply cabinet offers extreme rigidity, providing a rock-solid foundation for the audio magic happening inside. With a front midrange horn and rear-loaded compound low-frequency horn, this speaker delivers sensitivity and dynamics that will leave you utterly captivated.
Extensive bracing, incorporating Differential Materials Technology (DMT), tightly couples the drivers to the cabinets, ensuring that every note is reproduced with astonishing precision.
And let’s not forget the exquisite precision machined gold-anodized aluminum metal trims that complement the beauty of the real wood cabinet, making the Westminster Royal GR-OW a true work of art.
To top it off, a specially formulated Prestige wood wax is included to keep the cabinet in pristine condition, ensuring that this speaker continues to deliver a listening experience that’s nothing short of extraordinary.
Tannoy – around 100 years of British sound heritage and innovation.
Technical Specifications
System
Frequency response 1 18 Hz – 27 kHz (-6 dB)
Recommended amplifier power 20 – 350 W RMS
Power handling (IEC) 175 W continuous, 700 W peak
Nominal dispersion 90 degrees conical
Sensitivity 2 99 dB (1 W @ 1 m)
Impedance 8 Ω
Maximum SPL 2 121 dB continuous, 127 dB peak
Components
Low frequency dual concentric 380 mm (15″) with paper pulp cone and twin roll impregnated
fabric surround, 52 mm (2″) round wire voice coil
High frequency dual concentric 52 mm (2″) aluminium/magnesium alloy dome with round wire
voice coil
Crossover
Frequency B200 Hz acoustics, 1.0 kHz electrical
Type Bi-wired, hard wired passive, low loss. Time compensated.
2nd order low pass, 2nd order high pass
Adjustment ±3 dB over 1.0 kHz to 27 kHz shelving,
+2 dB to 6 dB per octave over 5 kHz – 27 kHz slope
Enclosure
Type Compound horn
Connectors 5 x 4 mm 24 ct Tannoy customized binding posts
Dimensions (HWD) 560 x 980 x 1395 mm
(22.1 x 38.6 x 54.9″)
Net weight 140.2 kg (308.4 lbs)
Construction 19 mm (¾”) MDF with plywood internal bracing, heavily damped
Finish Walnut veneer and high acoustic transparency nylon grill cove
Accessory pack (included)
Bi-wire bridge connectors
Prestige wood wax
Felt pad
Grille key
Metal feet
Welcome pack documentation
